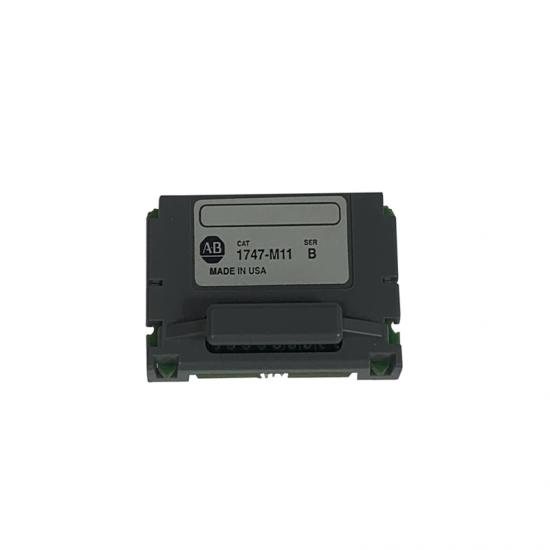

A-B  1747-M11 Output module

Rockwell Disclaimer: The product is used surplus. PDF Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because PDF Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, PDF Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. PDF Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. PDF Supply also makes no representations as to your right to install any such firmware on the product. PDF Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

The Allen-Bradley 1747-M11 is an EEPROM memory module in the SLC 5/03 family of programmable controllers. Controllers in this family have the fixed controller or the modular controller hardware options. With a controller from this family, adaptability during system configuration is a guarantee. This helps in creating systems that fit your specific needs. The 1747-M11 offers 0.44ms execution times and 10x faster throughput.  As a controller in the SLC 5/03 family, the 1747-M11 is powered by a separate power supply which has to be mounted on the left side of the 1747 I/O chassis. The 1747-M11 has a memory capacity of 8k or 16k which is battery powered. Additionally, the 1747-M11 uses the DH-485 and RS-232 ports for communication.

A programmable memory module is very sensitive to electrostatic charges. It should be handled with extra caution PLUS proper grounding measures.  During progamming, users should pay great attention to detail. To program the 1747-M11 memory module, the center pin must come into contact with the module through the VPP using the jumper. With the connectors marked, align the arrows as indicated. This should be done to integrate the memory module within the adapter. The top of the adapter assembly is marked by a notch. This ensures the correct orientation of the adaptor assembly. The PROM receptacle of the adapter assembly should then be inserted into the PROM programmer. After executing all of the above processes, actual programming can begin. This is done by following the instructions provided along with the 1747 M11 programmable module.

 Technical Specifications:

Series  : SLC 500

Module Type  : Memory Module Adapter

Memory : 32 Kilobytes EEPROM

Memory Type : EEPROM

Program Scan Time : 0.9 milliseconds

I/O Scan Time :  0.225 milliseconds

Communication:   Ethernet, RS-232

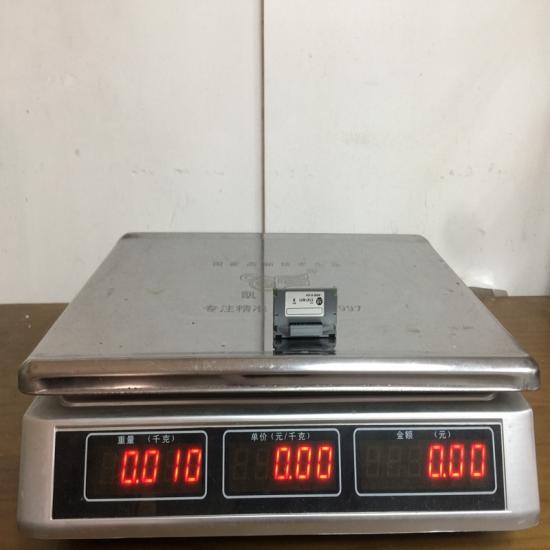

The structure and details of the product：
