Rockwell Automation announces that as of December 31, 2019, the 30mm Contact Block 1-NC 800T PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s).
Item NO.:
800T-XD2PPayment:
T/TProduct Origin:
USAColor:
NewGoods stock:
2000Product weight:
0.04KGLead Time:
IN STOCKA-B 800T-XD2P Controller module CONTACT BLOCK FOR 800T/H SEALED SWITCH 1NC
· 800T (metal) and 800H (plastic) 30.5 mm product lines are designed and constructed to perform in the most demanding industrial environments.
· Button caps made from thermoplastic polyester resin and deliver excellent resistance to corrosive agents and ensure color identification is never lost.
· Operator bushings are made from die cast zinc alloy giving strength and stability in installation.
· Riveted construction of the operator bushing, diaphragm seal and base plate, by four secure steel rivets, provides increased durability and tamper resistance.
Product Series：800T
Component Type Pushbutton and Pilot Lights： Contact Block
Contact Configuration：1 NC
Contact Breaking Capacity, AC15, 110V ：3 A
Contact Breaking Capacity, AC15, 120V ：3 A
Contact Breaking Capacity, AC15, 240V：1.5 A
Contact Breaking Capacity, AC15, 415V：0.87 A
Contact Breaking Capacity, DC13, 24V：5 A
Contact Breaking Capacity, DC13, 30V ：4.6 A
Contact Breaking Capacity, DC13, 110V ：3.27 A
Contact Breaking Capacity, DC13, 120V：3 A
Contact Breaking Capacity, DC13, 220V：1.64 A
Compatible Product Series：800T / H compatible
Operating Temperature, Max：55 °C max
Operating Temperature, Min：-40 °C min
Storage Temperature, Max：85 °C max
Storage Temperature, Min：-40 °C min
Relative Humidity, Min：50 %RH
Relative Humidity, Max：95 %RH
Shock Acceleration (Max.)：100 g
Shock Duration (Max.)：11 ms
Vibration Acceleration (Max.)：10 m/s²
Vibration Displacement (Peak to Peak Max.)：1.52 mm
Vibration Frequency, Operational (Max.)：2000 Hz
Standards Compliance ：UL 508 CSA C22.2 No. 14 EN 60947-5-1 EN 60947-5-5 ISO 13850

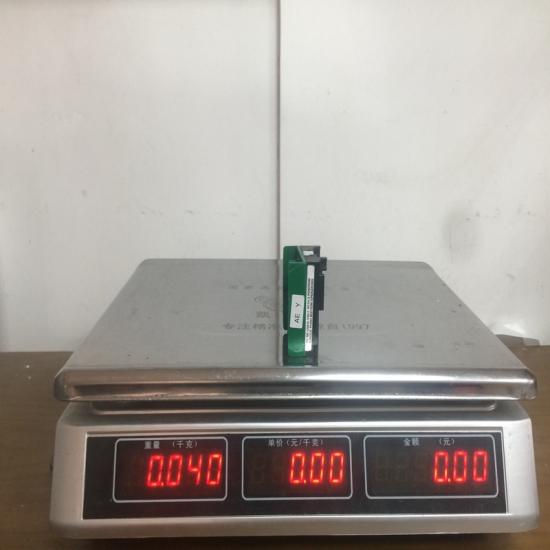

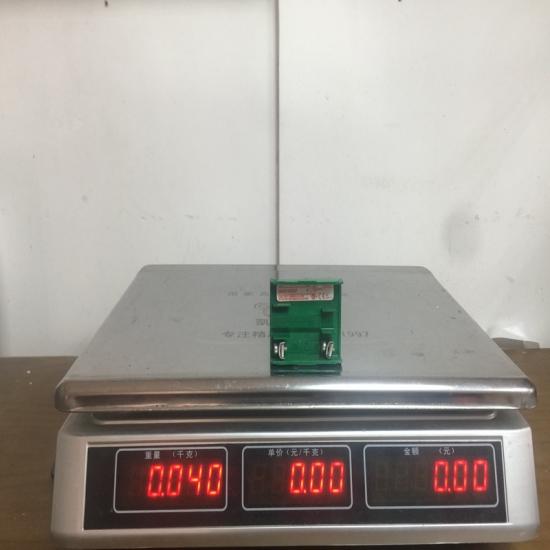

The structure and details of the product：
