The asymmetry relais AK 9840 of the VARIMETER series monitors voltage asymmetry, under voltage, phase failure as well as incorrect phase sequence at three-phase mains. The measurement is very simple and can be carried out without much wiring effort, as no separate auxiliary voltage is required. Early detection of impending failtures and preventive maintenance prevent costly damage and as a user you benefit from the operational safety and high availability of your system.
Item NO.:
AK9840Payment:
T/TProduct Origin:
GermanyColor:
NewGoods stock:

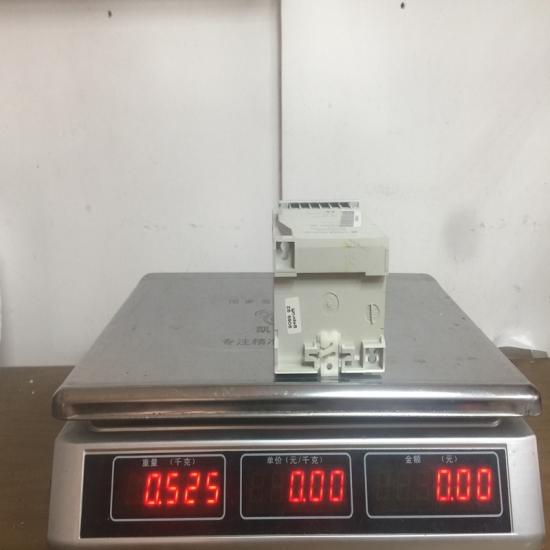

1200Product weight:
0.525KGLead Time:
IN STOCKDOLD AK9840 Controller module
The AK 9840 asymmetry relay monitors the voltage symmetry of the phase voltages, the undervoltage and the correct phase sequence L1-L2-L3. Voltage asymmetry and undervoltage are determined by measuring the arithmetic average between the three phases. If there is no fault in the system being monitored the output relay is energized (closed circuit principle), contact 15-18, 25-28 is closed, and this is indicated by a green LED. The instrument responds to asymmetrical voltage changes caused by unequal mains loading or failure of an outer conductor due to the melting of a fuse. An asymmetry relay always only detects the difference between two voltages, and hence does not react to symmetric voltage falls in the mains supply unless the voltage drops belowthe undervoltage recognition vaiue set at 0.7 UN. lf the set asymmetry is exceeded positively or negatively or if there is undervoltage, the output relay is deenergized alter the set response delay. lf the phase sequence is incorrect, the output relay responds without delay. The LED indicator is extinguished. Thanks to the special circuitry which evaluates the phase angle, an a fault condition, the relay will not be affected by any voltage feedback. Depending an the mains conditions, the feedback is identified as asymmetry - delayed - or as incorrect phase sequence - non-delayed.
• According to IEC/EN 60255-1
• For nominal voltages from 3 AC 110 up to 690 V
• Detection of - Voltage asymmetry - Incorrect phase sequence - Phase failure - Undervoltage
• Voltage feedback recognition
• Also suitable for harmonic industrial mains
• Closed circuit operation
• Contact position indication
• With adjustable delay
• 2 C/O contacts
• Width: 75 mm
The structure and details of the product：
