This document is intended to supplement the Operating Instructions insert that ships with the relays.The BH5932 is designed to monitor two sensor inputs that are detecting rotating targets on a motor shaft. It can be used for Standstill or Overspeed monitoring.
Item NO.:
BH5932Product Origin:
GermanyGoods stock:

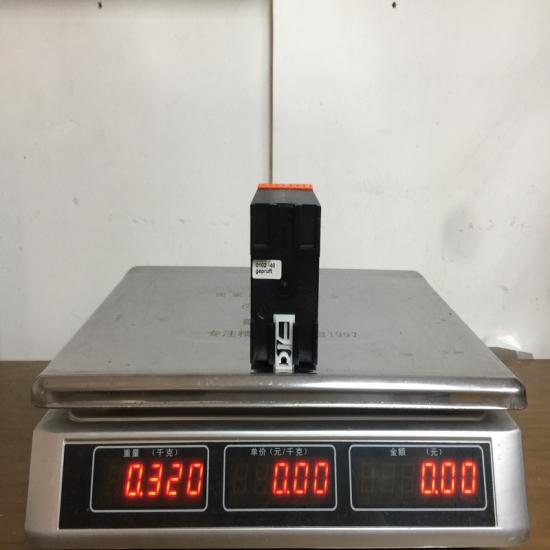

2100Product weight:
0.32KGLead Time:
IN STOCKDOLD BH5932 Processor module
To program the BH5932, you must first do some calculations. You will need to know the number of targets to be detected and the rotations per minute (RPM) at which the application “safe” speed needs to be set.
The impulse per minute (IPM) is determined for all applications as follows: (IPM = RPM @ which to switch off x number of sensing targets) Ex. User wants to shut off below 7.5 RPM; there are two targets on the shaft; the sensors are mounted next to each other 15 IPM = 7.5 RPM x 2
• Safety relay K1 is welded (replace device)
• Standstill only detected on proximity sensor 1 (check Proximity sensor 2 on INB)
• Safety relay K2 is welded (replace device)
• Standstill only detected on proximity sensor 2 (check Proximity sensor 1 on INA)
• Safety relay is welded (replace device)
• Feedback circuit X1 - X2 not closed
• The two proximity sensors did not detect standstill simultaneously (within 2 seconds)
The structure and details of the product：
